| Heat transfer area | 0,2 – 2,7 m2 |
| Max flow rate | 8,5 m3/h |
| Connection | DN25 (threaded, flanges, clamp, counterflanges, fitting …) |
Operating pressure | -1 / 25 bar |
Max operating temperature | -100 / 300 °C |
| Internal volume | 0,2 – 2,7 ltr |
| Weight | 9 – 25 kg |
Description

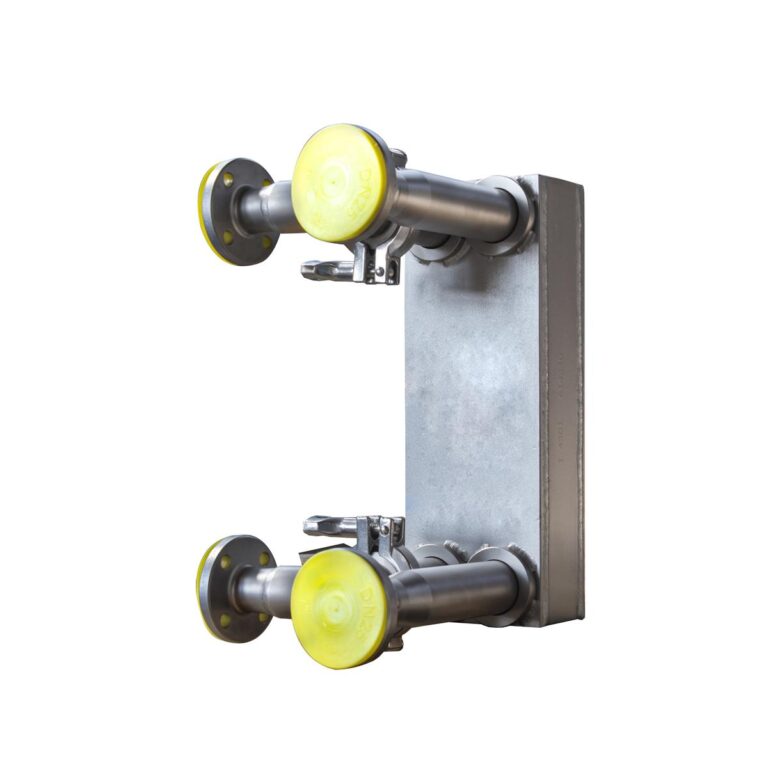

The model ST03 heat exchanger from the Standard line product line is the smallest model of heat exchanger that can be used in operation. With this heat exchanger, we emphasize the smallest possible occupied space with maximum heat transfer. The exchanger is high quality and efficient. It can be used in a number of industrial segments. The ST03 heat exchanger can be offered with a maximum number of 120 plates.
Technical specifications

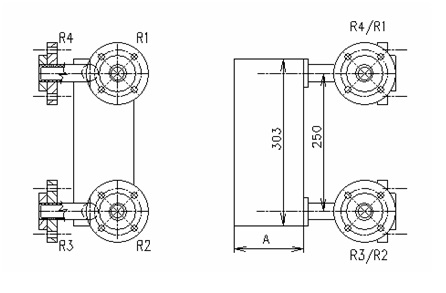

| Number of plates | Area m2 | Weight Kg | Lenght A |
| 12 | 0,253 | 14,6 | 46 |
| 16 | 0,345 | 15,3 | 56 |
| 24 | 0,529 | 16,8 | 76 |
| 32 | 0,713 | 18 | 96 |
| 40 | 0,897 | 19,5 | 116 |
| 48 | 1,081 | 20,9 | 136 |
| 64 | 1,449 | 23,8 | 176 |
| 80 | 1,817 | 26,7 | 216 |
| 96 | 2,185 | 29,5 | 256 |
| 120 | 2,737 | 33,4 | 316 |
Applications
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
Material
We are able to offer the following quality materials for the production of ST03 heat exchangers.
Body of heat exchanger
- austenitic steel 1.4404, 1.4571
- superaustenitic steel 1.4539 or 1.454
- nickel alloy 2.4819 (Hastelloy)
- titanium alloy 3.702
- possibly according to the customer’s wishes
Frame of heat exchanger
- austenitic steel of grade 1.4571, surface ballotini
