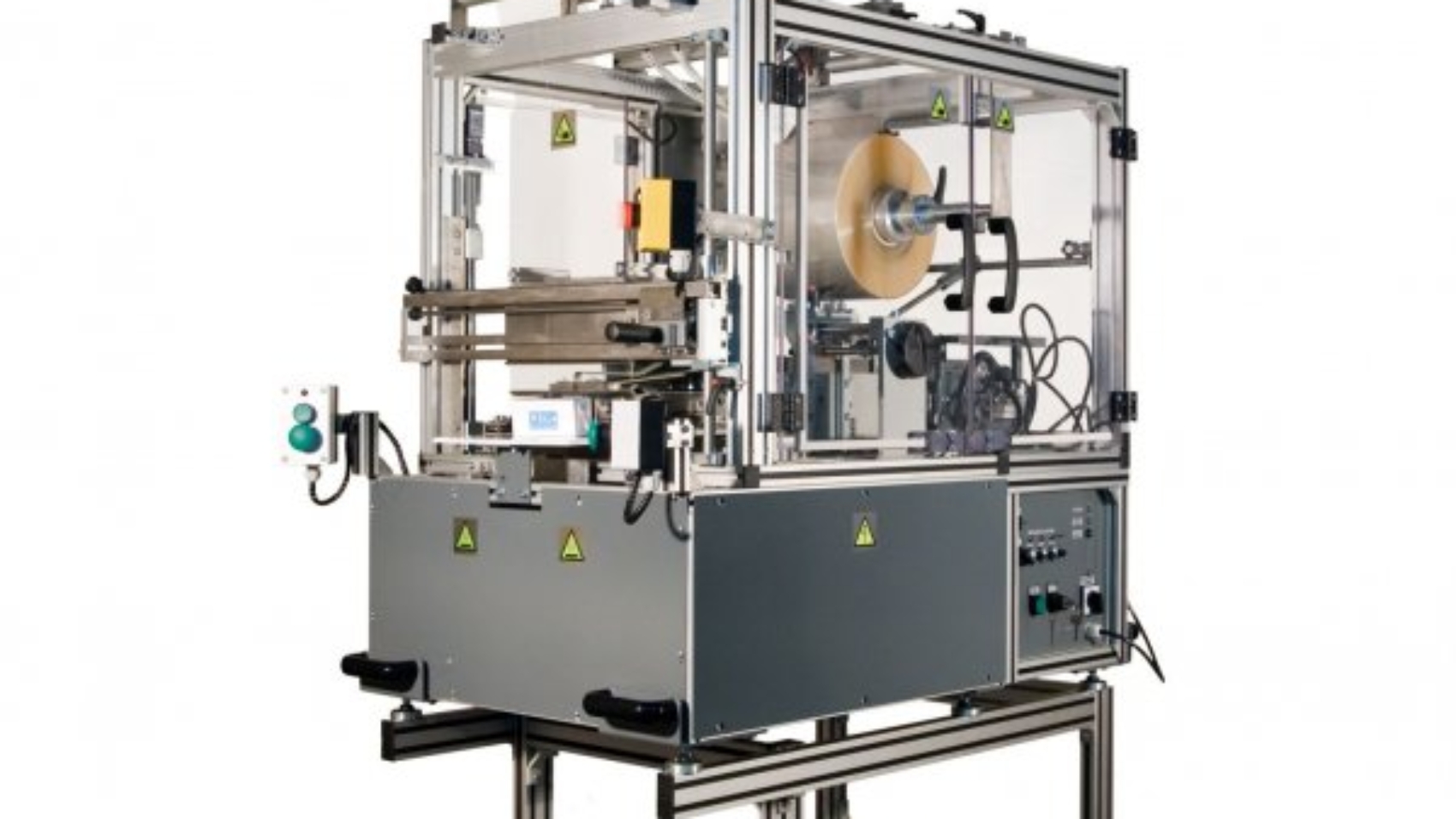

Semi automatic cellowrapper Fk-6

by celofoniarki-en

Features:

  • Small, easy to use, ideal for short series of products, especially cosmetic and perfume
  • Designed to easily and quickly change the size of the boxes
  • Electronic PLC control

Technical parameters:

Dimensions and weight: 1170 x 750 x 1130 mm / 180 kg
Power supply: 230 V AC, 50 Hz, 1300 W
Pneumatic supply: 0.4 - 0.6 MPa, 50 l/min
Minimal size of the box: amin = 15mm, bmin = 50mm, cmin = 60mm
Maximal size of the box: amax = 100mm, bmax = 200mm, cmax = 300mm
Max/Min size of the film piece: dmax = 380 mm, emax = 500 mm / dmin = 80 mm, emin = 120 mm
Capacity: dependable on the size of the box from 300 to 500 units per hour

Wyposażenie opcjonalne

  • Urządzenie do zakładania tasiemki rozrywającej
  • Urządzenie do pozycjonowania folii drukowanej
  • Grzałki taśmowe
MACHINE FOLDER
celofoniarka_am5_100c-crop-600-400

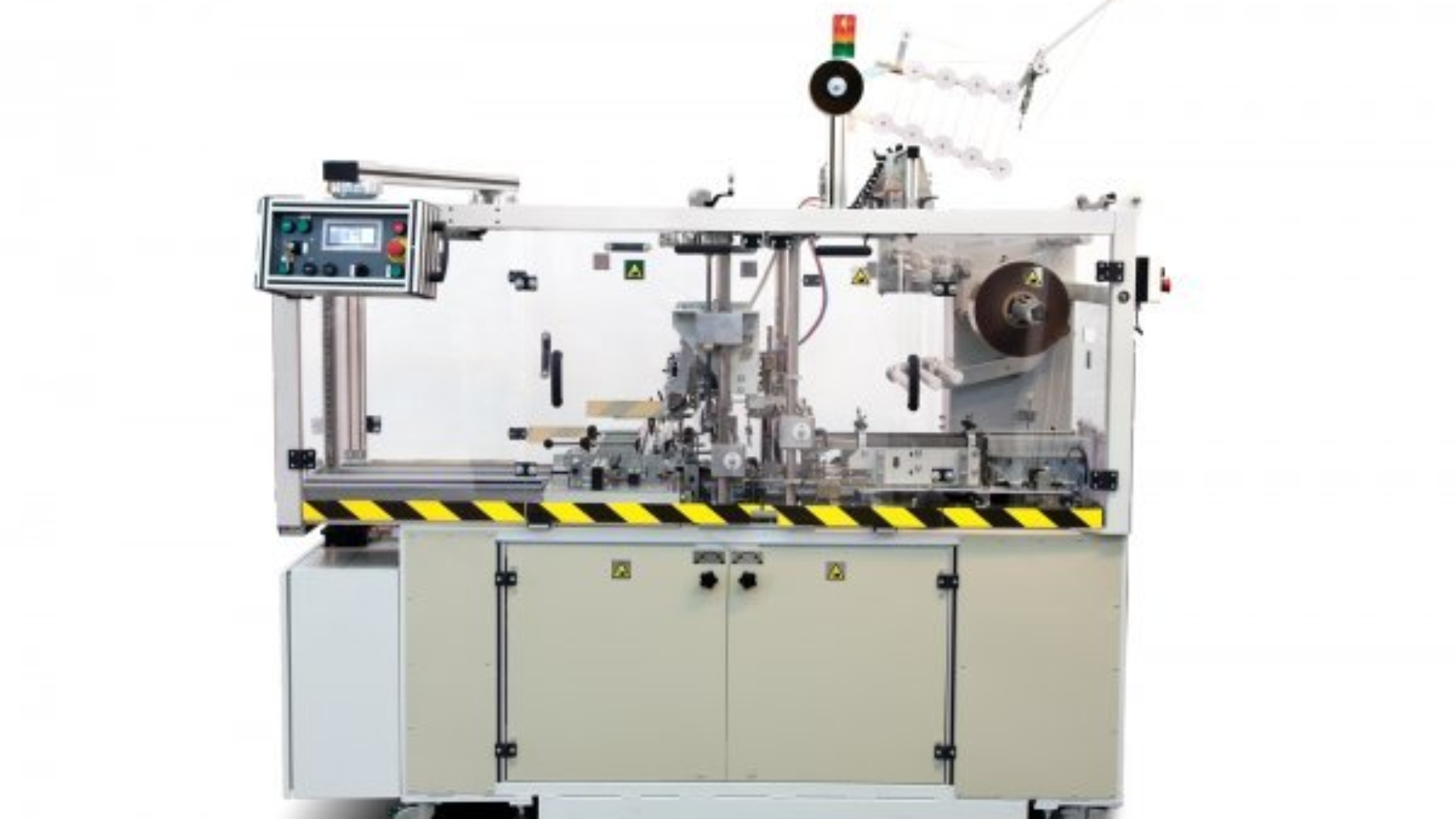

Automatic cellowrapper AM-5-100CS

by celofoniarki-en

Features:

Automatic overwrapper designed for big range of wrapped products ( almost 0,5m width). Especially recommended for biggest chocolate boxes  and symilar.

  • Universal automatic machine with a possibility of converting to different sizes of boxes
  • Conventional and non-conventional systems of box feeding with a usage of transporter or box magazine
  • Automatic speed control of transporter and machine
  • Possibility of adaptation to wrap pockets of products
  • Possibility of connection with automatic line
  • Equipped with the touch pad
  • Electronic piloting system PLC

Technical data:

Dimensions and weight: 2240 / 1100 / 1600 mm
Power supply: 3x400V AC/ 50Hz/ 3800W
Pneumatic supply: 0.6 MPa, 250 l/min
Minimal size of the box: amin = 15 mm, bmin = 60 mm, cmin = 60 mm
Maximal size of the box: amax = 100 mm, bmax = 330 mm, cmax = 460 mm
Max/Min size of the film piece: dmax = 515 mm, emax = 750 mm / dmin = 80 mm, emin = 120 mm
Capacity: dependable on the size of the box from 1200 to 2400 units per hour

Additional equipment:

  • an element for installing a disruptive tape
  • an element for positioning the printed film
  • side heaters with conveyor belts
MACHINE FOLDER
celofoniarka_am4_100c-crop-600-400

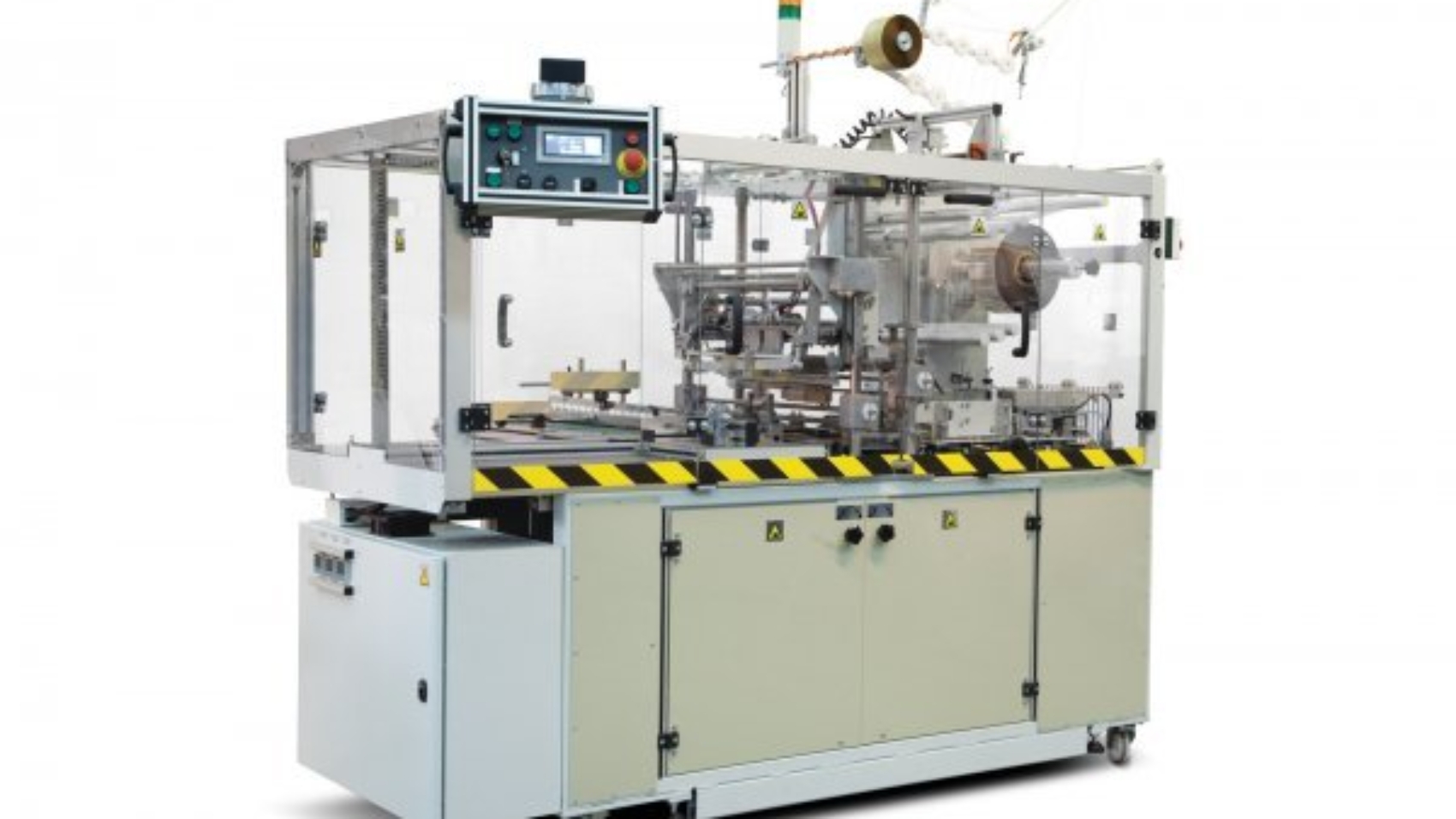

Automatic cellowrapper AM-4-100CS

by celofoniarki-en

Features:

Automatic cellowrapper , small outside dimensions of machine, designed of medium range  of wrapped products, recommended for perfume, cosmetics, tea , CD, DVD and similar.

  • Universal automatic machine with a possibility of converting to different sizes of boxes
  • Conventional and non-conventional systems of box feeding with a usage of transporter or box magazine
  • Automatic speed control of transporter and machine
  • Possibility of adaptation to wrap pockets of products
  • Possibility of connection with automatic line
  • Equipped with the touch pad
  • Electronic piloting system PLC

Technical parameters:

Capacity: dependable on the size of the box from 1800 to 3000 units per hour
Dimensions and weight: 2180 x 910 x 1720 mm / 700 kg
Power supply: 230 V AC, 50 Hz, 2500 W
Pneumatic supply: 0.6 MPa, 250 l/min
Minimal size of the box: amin = 5 mm, bmin = 60 mm, cmin = 60 mm
Maximal size of the box: amax = 100 mm, bmax = 200 mm, cmax = 250 mm
Max/Min size of the film piece: dmax = 380 mm, emax = 480 mm / dmin = 80 mm, emin = 120 mm

Additional equipment:

  • an element for installing a disruptive tape
  • an element for positioning the printed film
  • side heaters with conveyor belts
MACHINE FOLDER
