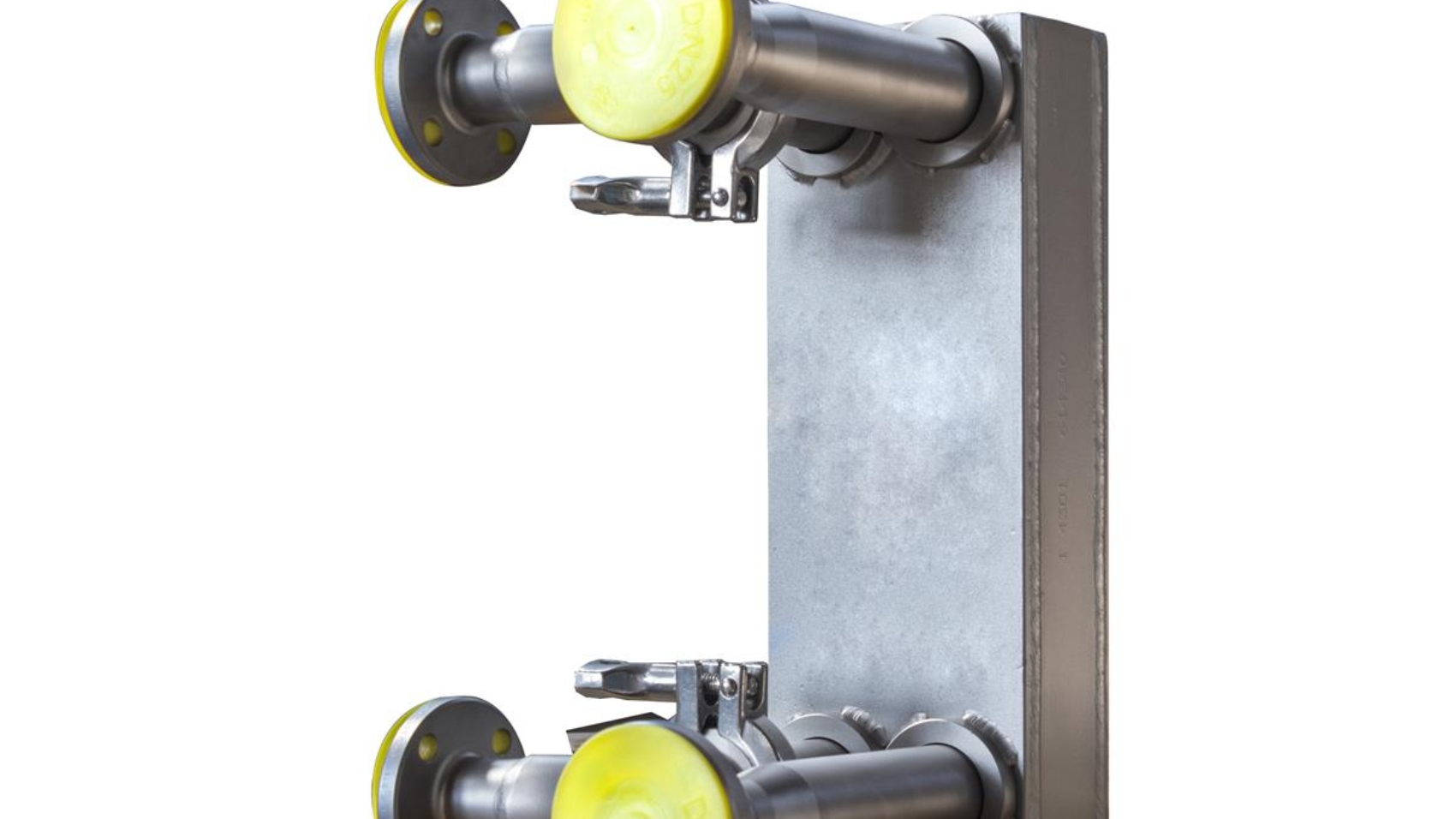

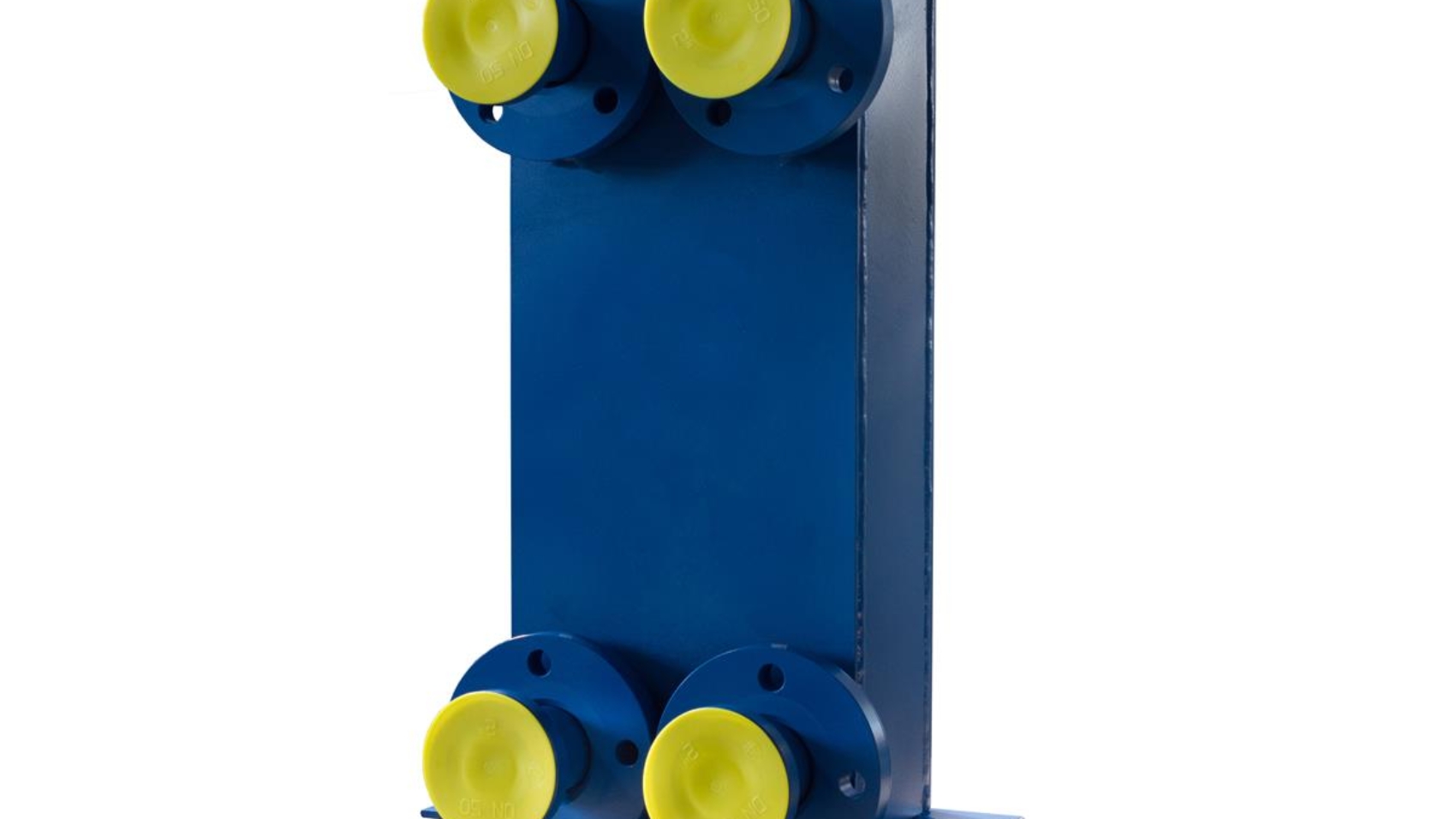

Welded heat exchanger model ST40

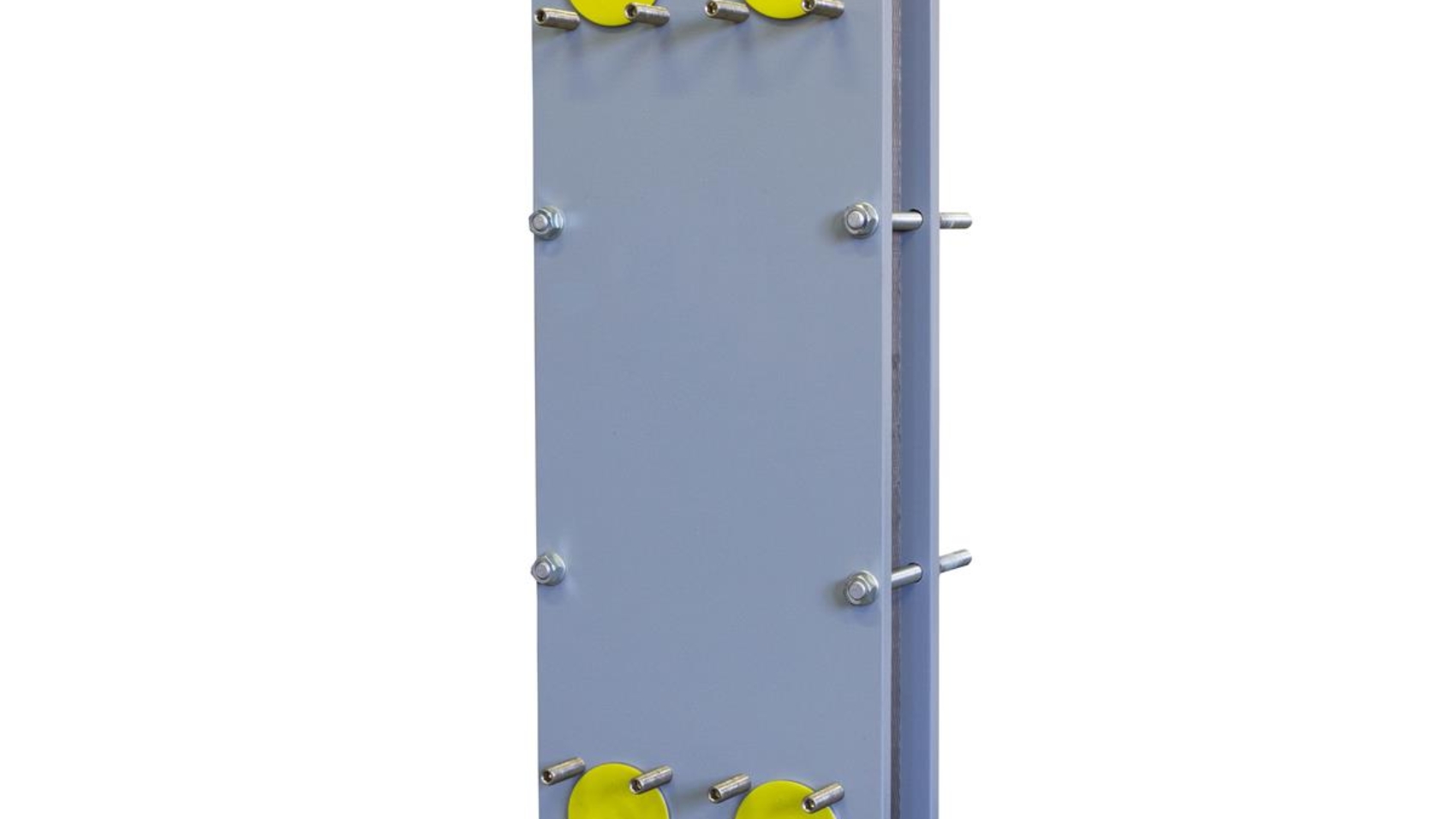

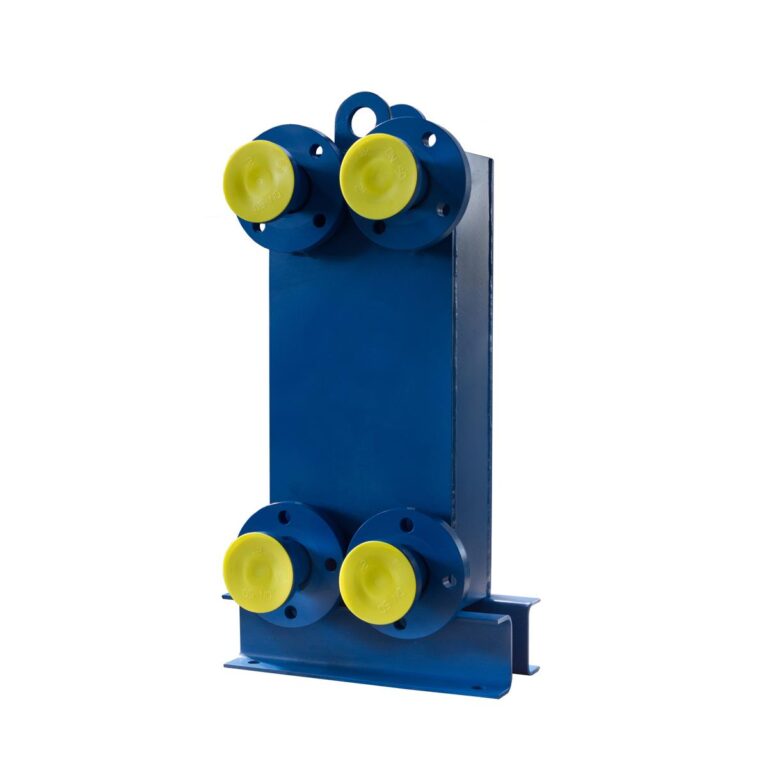

Welded heat exchanger model ST18
| Heat transfer area | 3,4 – 25,3 m2 |
| Max flow rate | 35 m3/h |
| Connection | DN50 (threaded, flanges, clamp, O-ring, counterflanges, fitting …) |
Operating pressure | -1 / 25 bar |
Max operating temperature | -100 / 300 °C |
| Internal volume | 2,5 – 21,7 ltr |
| Weight | 136 – 247 kg |

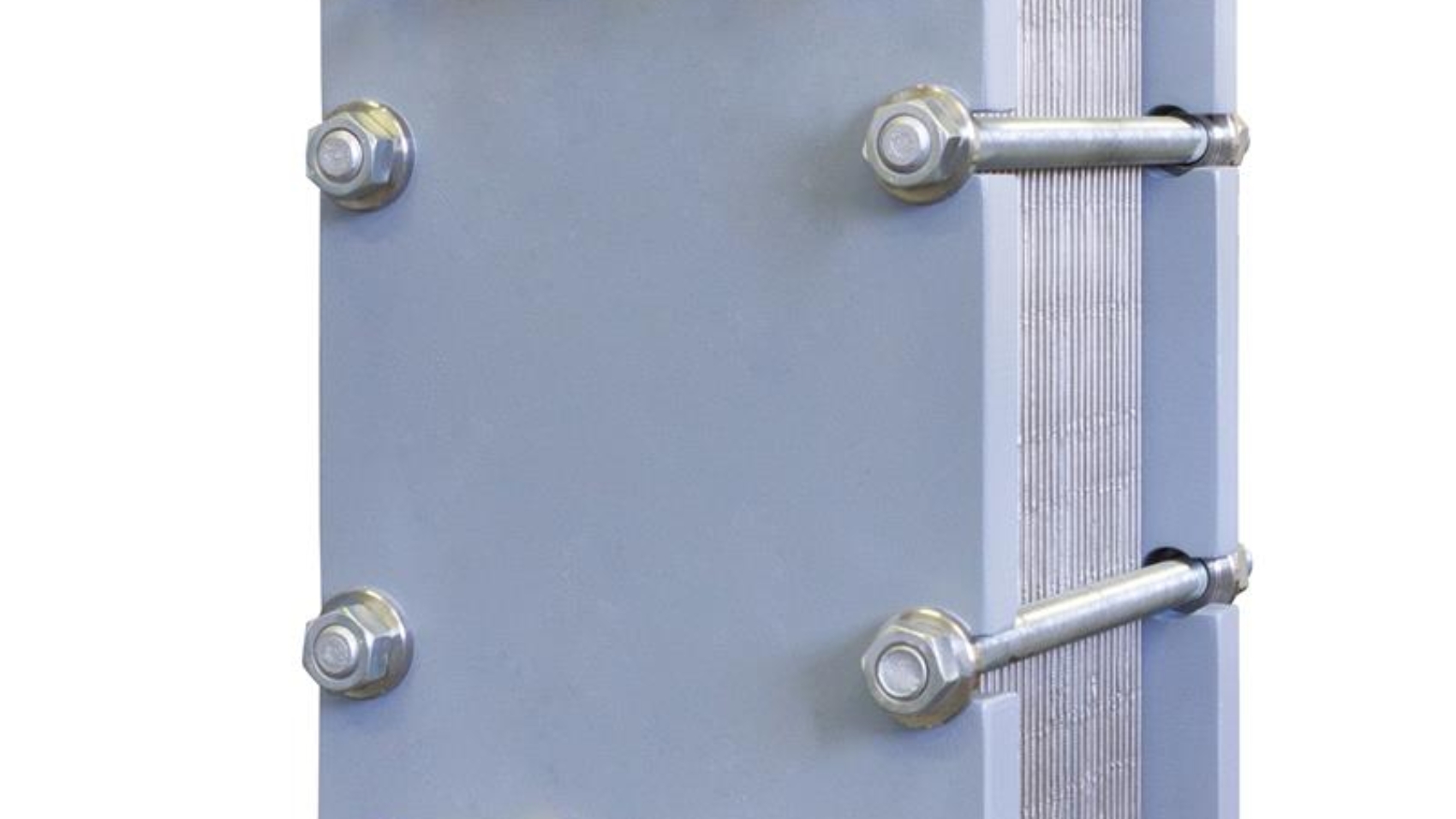

Description

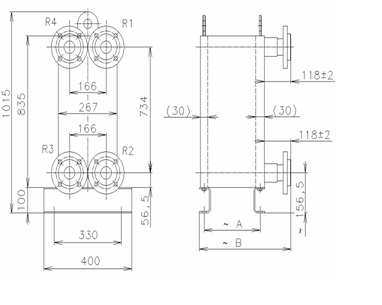

The ST18 heat exchanger from the Standard line product line uses a heat exchange area of up to 25.3 m2 with a maximum flow rate of 35 m3 per hour. This model is highly efficient and finds application in a number of industries. This heat exchanger is durable, has a long service life and meets the demanding criteria of industrial operations. We produce the ST18 heat exchanger with a maximum amount of 120 heat exchange plates.
Technical specifications
Number of plates | Area m2 | Weight Kg | Lenght A | Lenght B |
| 16 | 3,21 | 148 | 70 | 218 |
| 24 | 4,93 | 157 | 90 | 238 |
| 32 | 6,64 | 166 | 110 | 258 |
| 40 | 8,35 | 176 | 130 | 278 |
| 48 | 10,07 | 185 | 150 | 298 |
| 64 | 13,49 | 203 | 190 | 338 |
| 80 | 16,92 | 221 | 230 | 378 |
| 96 | 20,35 | 239 | 270 | 418 |
| 120 | 25,49 | 267 | 330 | 478 |
Applications
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
Material
We are able to produce the welded ST18 heat exchanger from the following types of materials.
Body of heat exchanger
- austenitic steel 1.4404, 1.4571
- superaustenitic steel 1.4539 or 1.4547
- nickel alloy 2.4819 (Hastelloy)
- titanium alloy 3.7025
- possibly according to the customer’s wishes
Frame of heat exchanger
- painted carbon steel, color RAL 7001
- austenitic steel 1.4571, surface ballotini

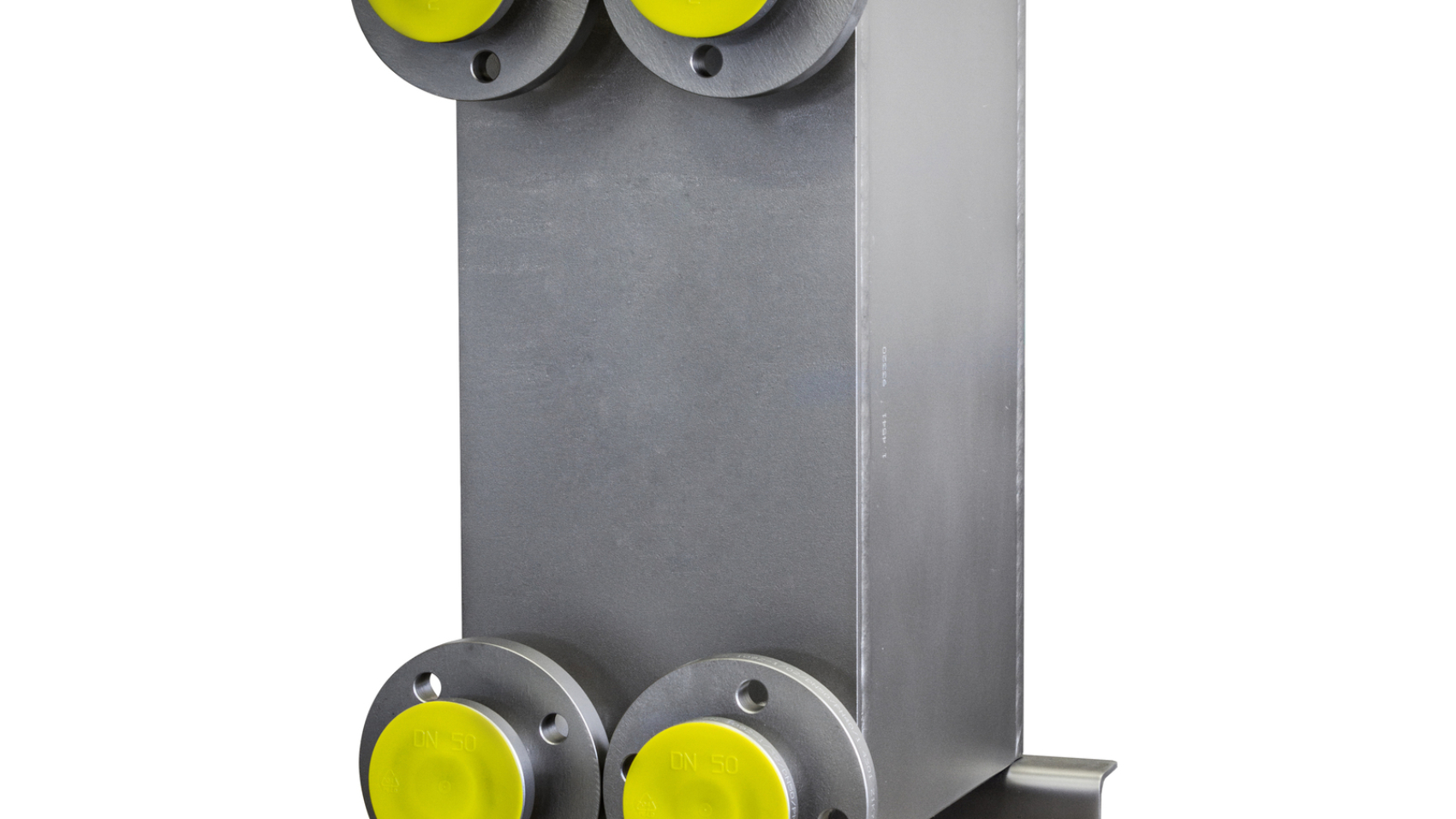

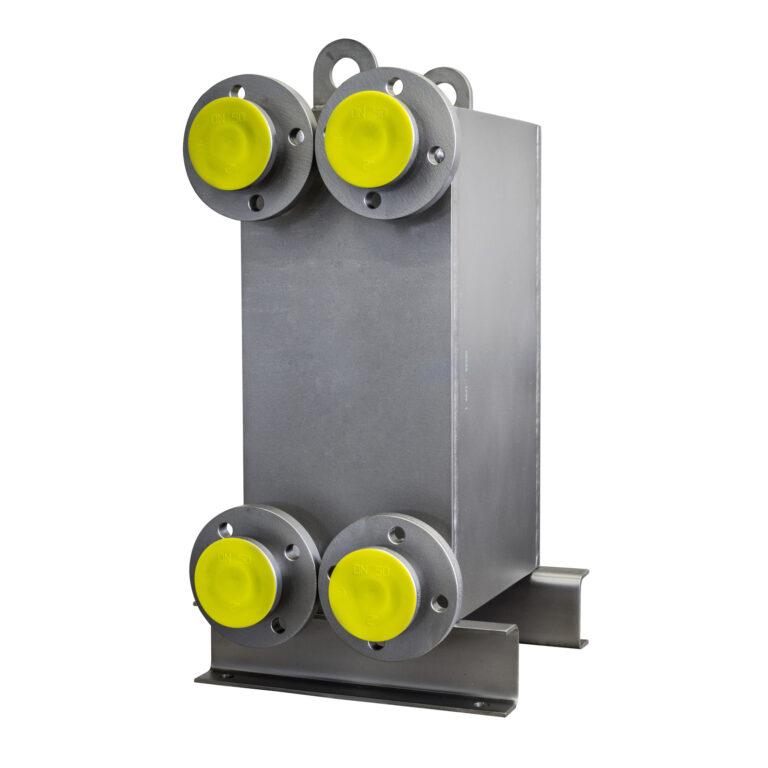

Welded heat exchanger model ST12
| Heat transfer area | 2 – 16,5 m2 |
| Max flow rate | 35 m3/h |
| Connection | DN50 (threaded, flanges, clamp, O-ring, counterflanges, fitting …) |
|
Operating pressure
|
-1 / 25 bar |
|
Max operating temperature
|
-100 / 300 °C |
| Internal volume | 1,9 – 16 ltr |
| Weight | 100 – 177 kg |
Description

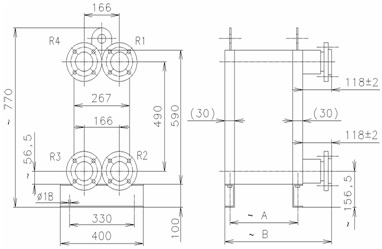

The model ST12 heat exchanger from the Standard line product line uses a heat exchange area of up to 16.5 m2 with a maximum flow rate of 35 m3 per hour. It is an efficient model that can be used in many industrial segments. We will be happy to design and supply this heat exchanger for you. This type of heat exchanger can be offered with a maximum number of 120 plates.
Technical specifications
| Number of plates | Area m2 | Weight Kg | Lenght A | Lenght B |
| 16 | 1,96 | 108 | 70 | 218 |
| 24 | 3,08 | 114 | 90 | 238 |
| 32 | 4,2 | 120 | 110 | 258 |
| 40 | 5,32 | 126 | 130 | 278 |
| 48 | 6,44 | 132 | 150 | 298 |
| 64 | 8,68 | 143 | 190 | 338 |
| 80 | 10,92 | 154 | 230 | 378 |
| 96 | 13,16 | 167 | 270 | 418 |
| 120 | 16,52 | 185 | 330 | 478 |
Applications
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
Material
We are able to offer the following material for the production of the ST12 welded heat exchanger.
Body of heat exchanger
- austenitic steel 1.4404, 1.4571
- superaustenitic steel 1.4539 or 1.4547
- nickel alloy 2.4819 (Hastelloy)
- titanium alloy 3.7025
- possibly according to the customer’s wishes
Frame of heat exchanger
- painted carbon steel, color RAL 7001
- austenitic steel 1.4571, surface ballotini
Welded heat exchanger model ST03
| Heat transfer area | 0,2 – 2,7 m2 |
| Max flow rate | 8,5 m3/h |
| Connection | DN25 (threaded, flanges, clamp, counterflanges, fitting …) |
Operating pressure | -1 / 25 bar |
Max operating temperature | -100 / 300 °C |
| Internal volume | 0,2 – 2,7 ltr |
| Weight | 9 – 25 kg |
Description
The model ST03 heat exchanger from the Standard line product line is the smallest model of heat exchanger that can be used in operation. With this heat exchanger, we emphasize the smallest possible occupied space with maximum heat transfer. The exchanger is high quality and efficient. It can be used in a number of industrial segments. The ST03 heat exchanger can be offered with a maximum number of 120 plates.
Technical specifications
| Number of plates | Area m2 | Weight Kg | Lenght A |
| 12 | 0,253 | 14,6 | 46 |
| 16 | 0,345 | 15,3 | 56 |
| 24 | 0,529 | 16,8 | 76 |
| 32 | 0,713 | 18 | 96 |
| 40 | 0,897 | 19,5 | 116 |
| 48 | 1,081 | 20,9 | 136 |
| 64 | 1,449 | 23,8 | 176 |
| 80 | 1,817 | 26,7 | 216 |
| 96 | 2,185 | 29,5 | 256 |
| 120 | 2,737 | 33,4 | 316 |
Applications
Chemical industry, pharmacy, industrial cooling or hot water stations, DEMI water heating, regulation of chemical processes etc.
Material
We are able to offer the following quality materials for the production of ST03 heat exchangers.
Body of heat exchanger
- austenitic steel 1.4404, 1.4571
- superaustenitic steel 1.4539 or 1.454
- nickel alloy 2.4819 (Hastelloy)
- titanium alloy 3.702
- possibly according to the customer’s wishes
Frame of heat exchanger
- austenitic steel of grade 1.4571, surface ballotini
